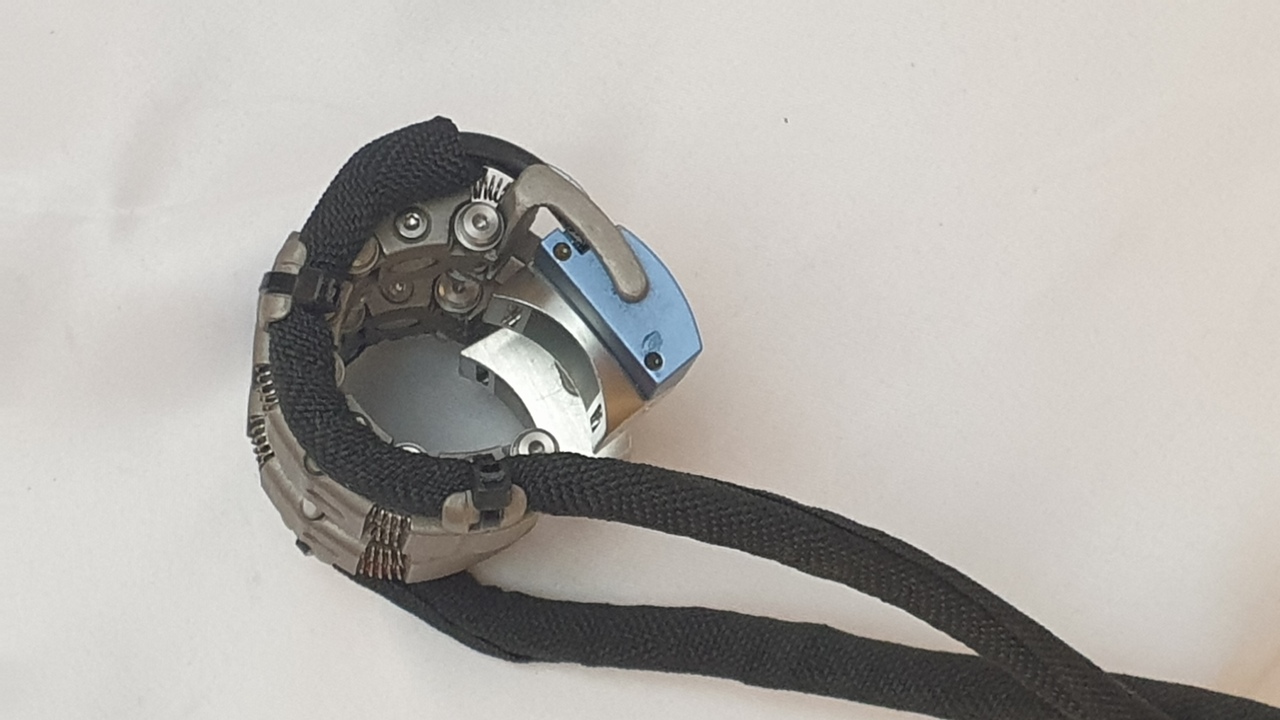

Micro Scanner

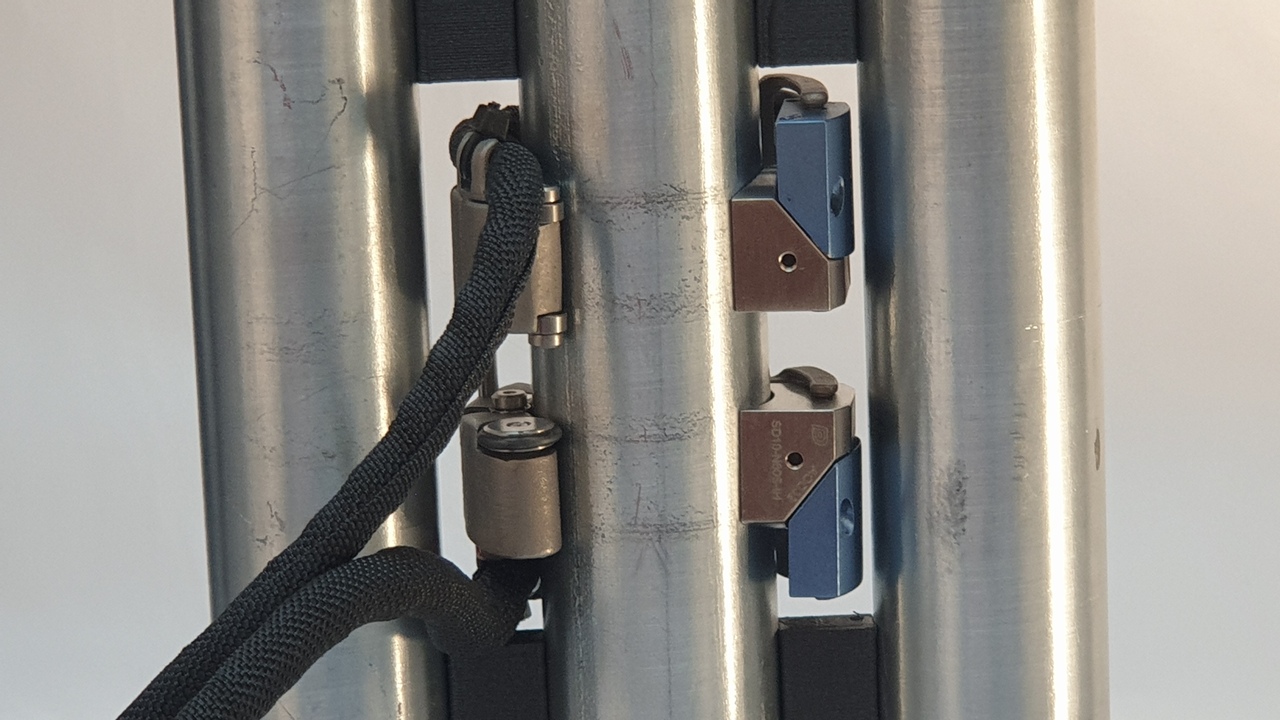

This is likely the smallest scanner in the world. Clearance requirements are only 12.5mm radial and 35mm axial (from weld toe)

Works on tube sizes 1" – 4"

Manufactured using DMLS 3D printing in 316 stainless steel. The design requires custom A15 probe casings (included) and custom metal cased wedges. This design allows for the very small clearances and the stainless cased wedges will last forever. Custom micro encoder is included. Scanner is both spring loaded and magnetic.

Clearance Requirements:
Radial 12.5mm
Axial 35mm

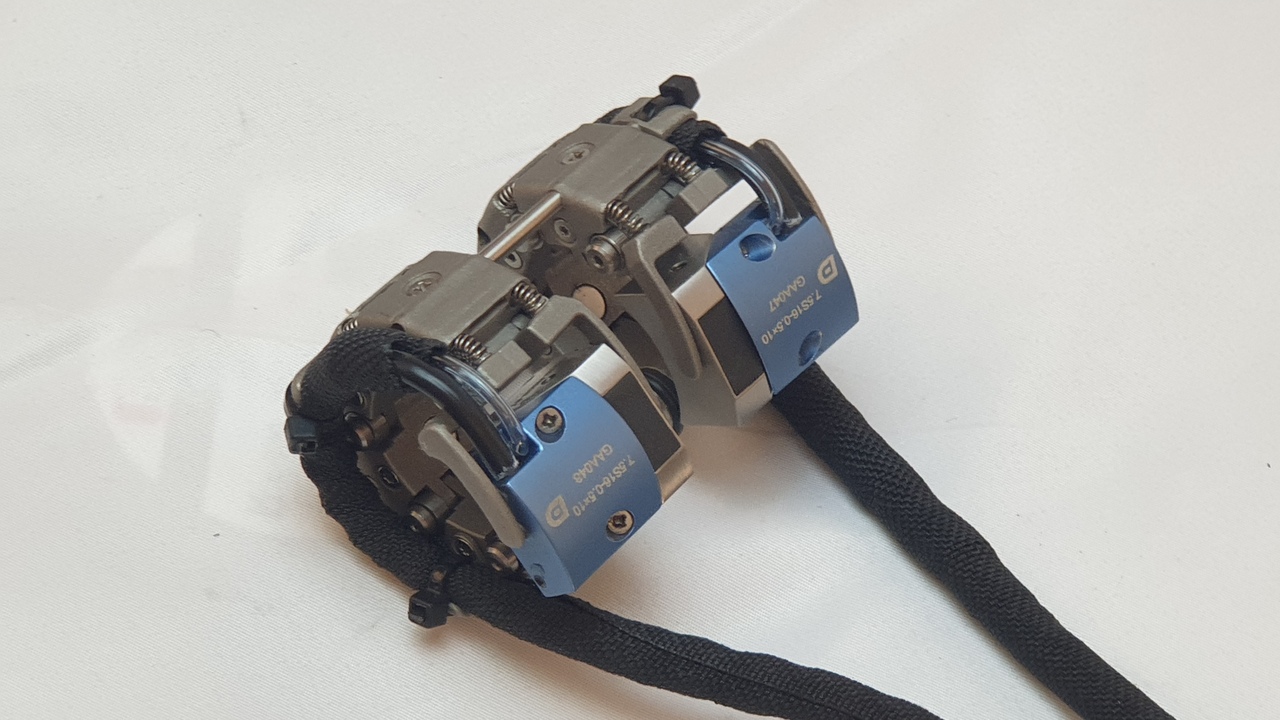

Scanner adjustment is easy and can be separated for single side scanning.

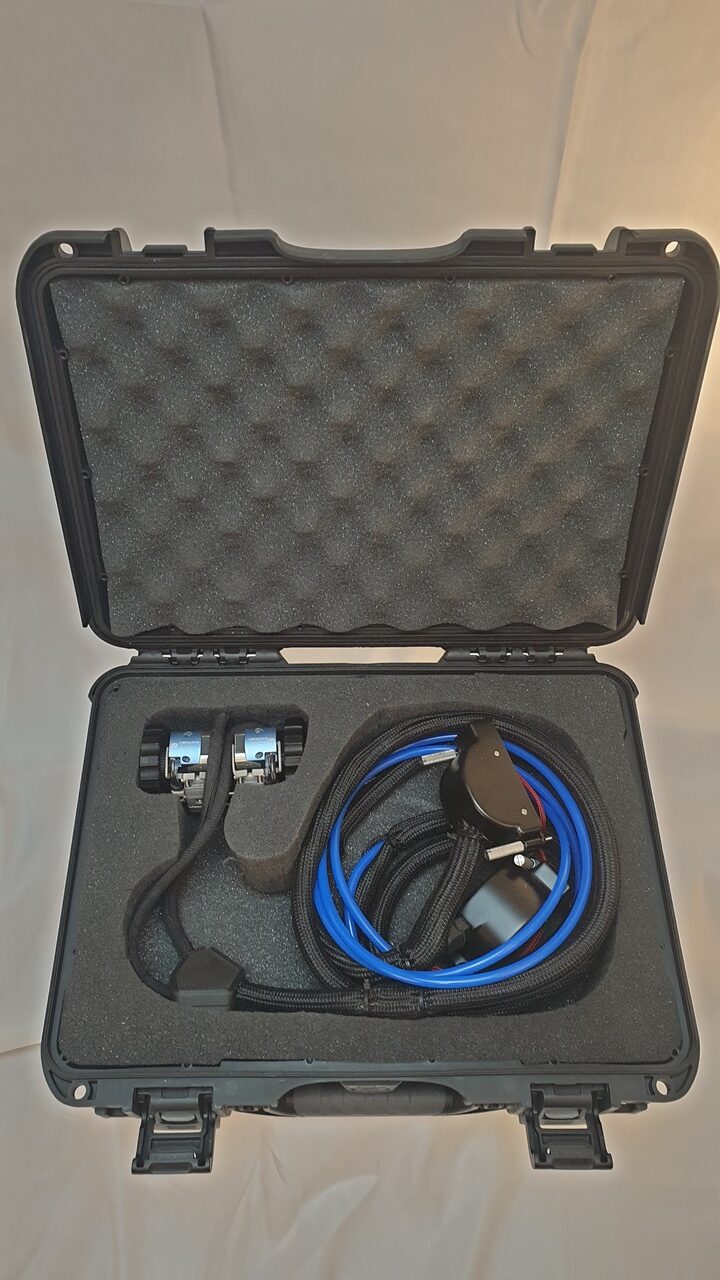

Water / Shock Proof case included.
